Technical information

ASK provides all the technical details you need to know about our products.

In this section we provide requirements for use, structural information and other technical details about ASK products. Please contact us if you have any inquiries.

Rolling Guide Systems – Technical Information

1.System composition 2.How to mount Guide Rail
3.Technical specifications 4.Life calculations
5.Load calculations of individual bearing

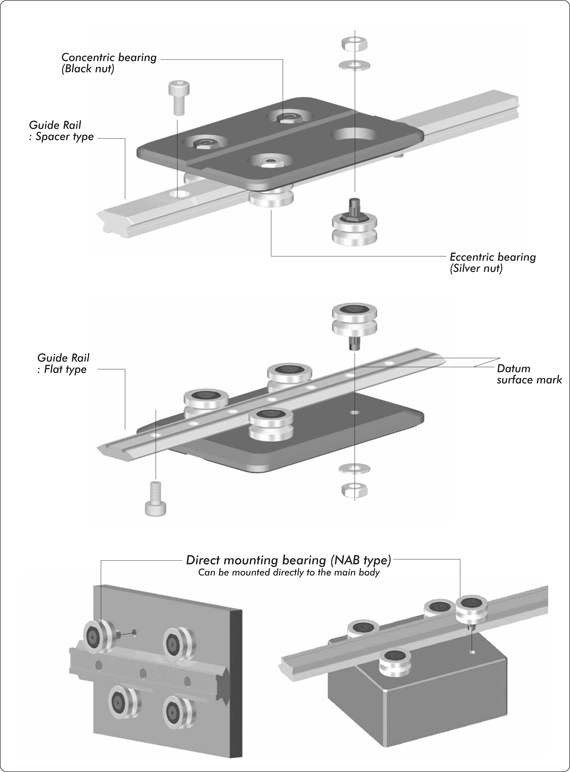

System composition

01

このページの先頭へ

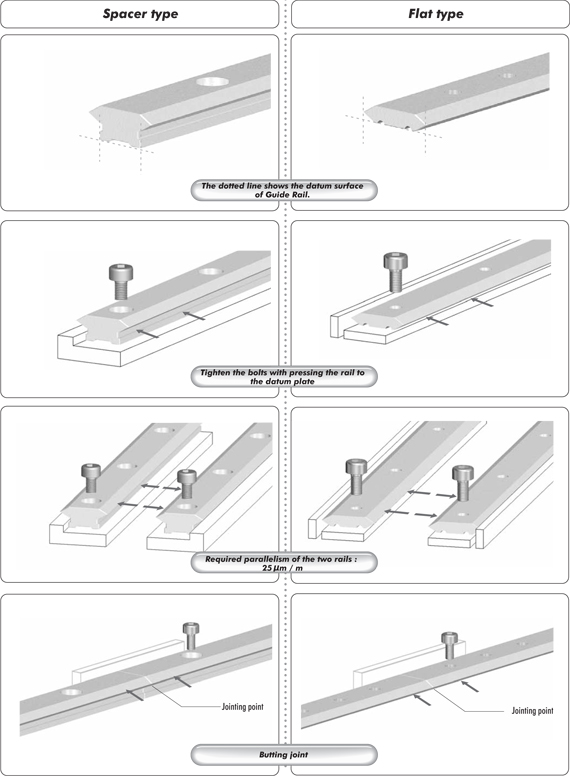

How to mount Guide Rail

pic02

このページの先頭へ

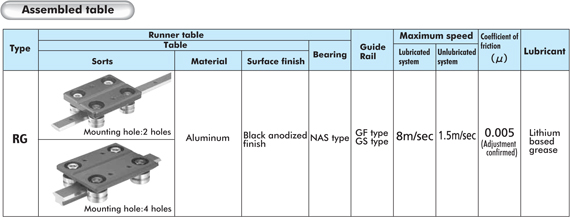

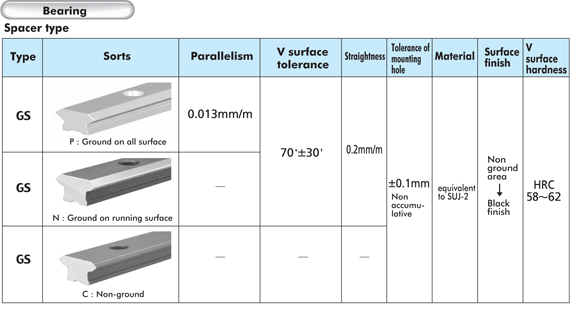

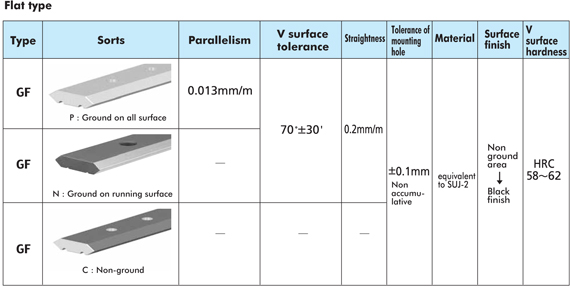

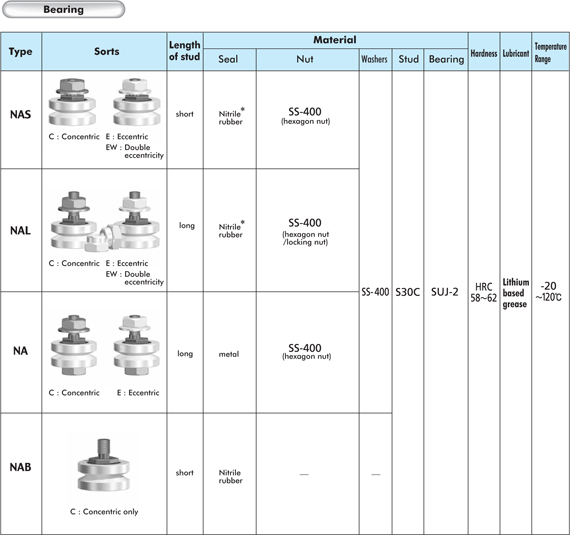

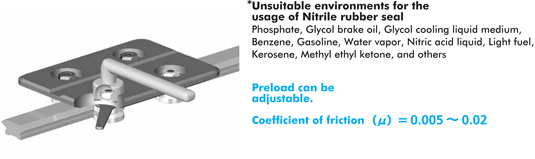

Technical specifications

pic03
pic04
pic05
pic06
pic07

このページの先頭へ

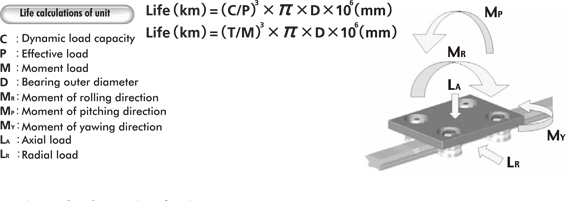

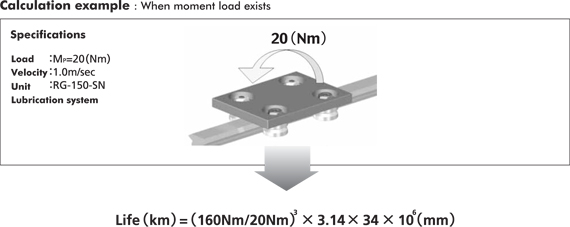

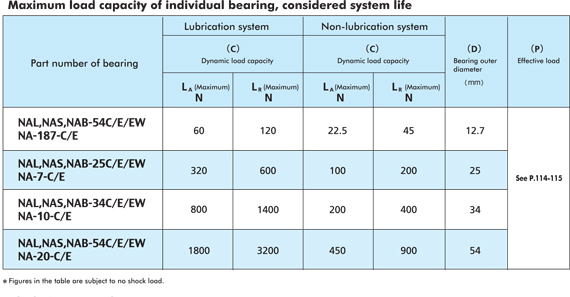

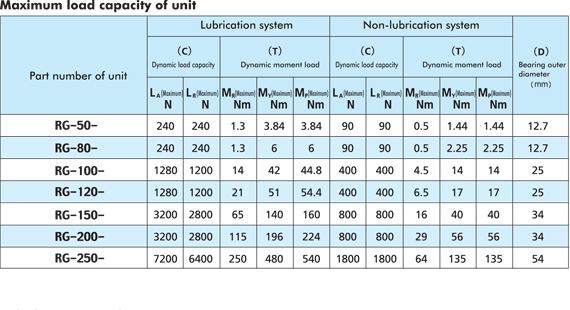

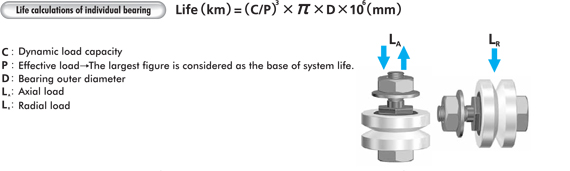

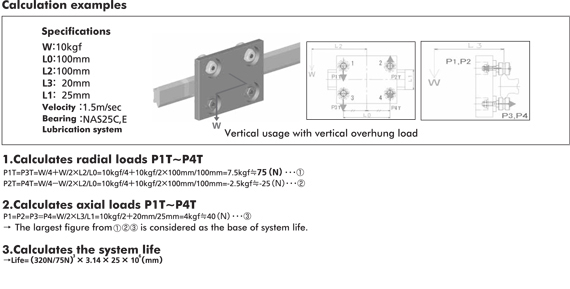

Life calculations

pic08
pic09
pic10
pic11
pic12
pic13

このページの先頭へ

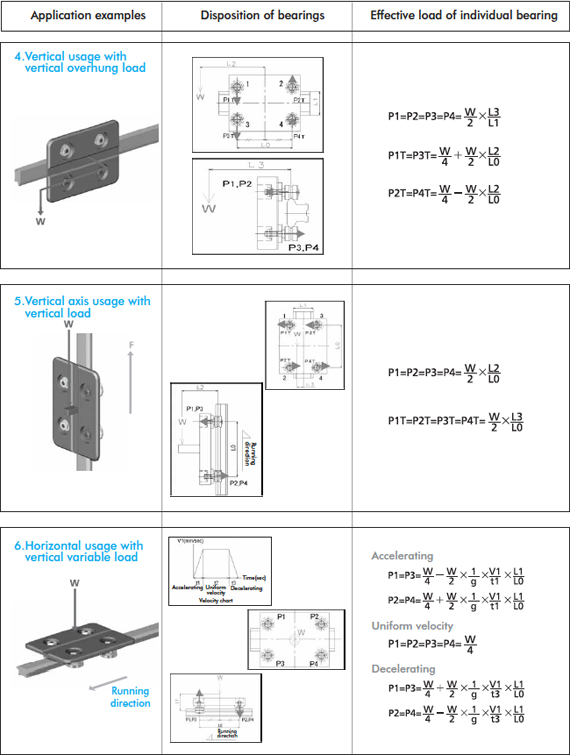

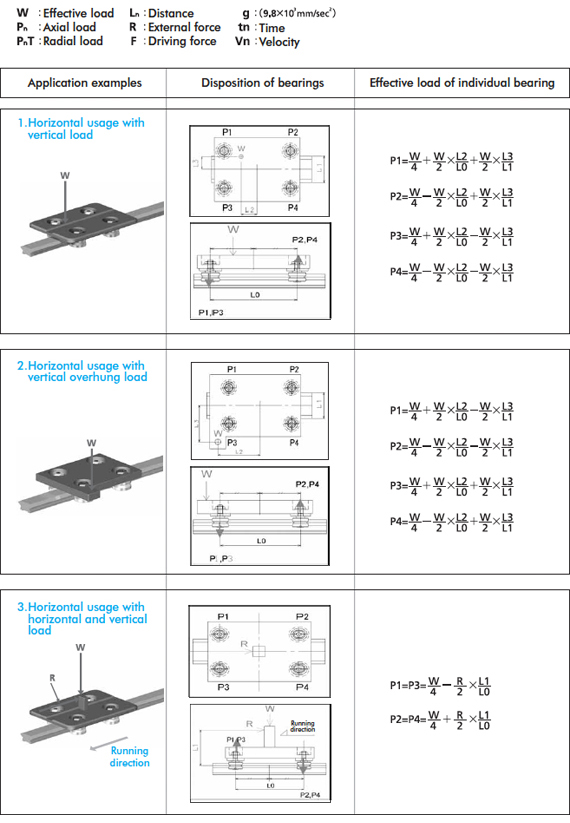

Load calculations of individual bearing

pic14
15
